Circuit Artist Demo

Circuit Artist is a minimalistic paint-like game where you can easily draw circuits just like pixel art and simulate/interact with them with the push of a button.

Rules:

• little pixel triangles are NANDs
• black pixels are background
• everything else is a wire

And that's it. Every circuit single is a simple image file that you can save or open.

You can play as:

• sandbox mode
• implementing a 7-segment display
• finding the greatest common division of two numbers

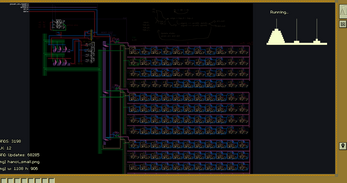

• solving the hanoi tower problem
• many more challenges/puzzles

Limitations of the Itch demo version:

• No challenges (only sandbox mode)
• No circuitopedia
• You can't open/save images.
• Maximum size is 256x256

It's good for:

• those who want to learn digital logic concept by messing around and having fun drawing
• learn by solving some puzzles

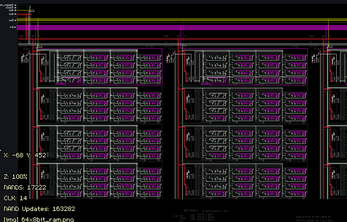

• implement more complex circuits (a CPU for example)

Links

• steam
• discord

Made with raylib.
